| Categories | Juice Filling Machine |
|---|---|
| Brand Name: | jiayuan |
| Model Number: | RCGF |
| Certification: | CE,SGS |
| Place of Origin: | CHINA,MAINLAND |
| MOQ: | 1 set |
| Price: | USD 16000 -55000 set |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Delivery Time: | 15 work days |
| Packaging Details: | wooden case |
| certification: | CE,SGS |
| water consumption: | 1600kg/h |
| power: | 6.68kw |
| weight: | 3000kg |
| dimension: | 2450*1800*2200 |
| warranty: | 1year |

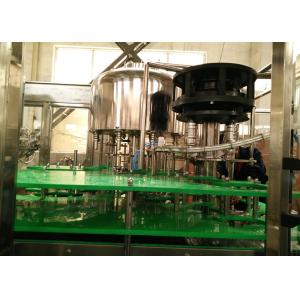

SUS304 Silvery White Wine/Juice Filling Machine 6000bph PCl Control+Touch Screen
Introduction:
The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.
It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.
Parameter
| Model | RCGF16-12-6 | RCGF24-24-8 | RCGF32-32-10 |
| Production capacity(500ml)(b/h) | 3000 | 10000 | 14000 |
| Filling precision | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) |
| Feedback consumption | ≤10% | ≤10% | ≤10% |
| Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 | (BottleDiameter)50-92;(Height):150-310 | BottleDiameter)50-92;(Height):150-310 |
| Suitable cap shape | (Plastic Screw Cap) | (Plastic Screw Cap) | (Plastic Screw Cap) |
| Water pressure of washing bottle(Mpa) | 0.18 | 0.18 | 0.18 |
| Wash pressure of washing bottle(kg/h) | 800 | 2500 | 3500 |
| Gas sourse pressure(Mpa) | 0.6 | 0.6 | 0.6 |
| Gas consumption(m3/min | / | 0.4 | 0.5 |
| Total power | 5.88 | 7.68 | 9.18 |
| Total weight | 2500 | 4000 | 5000 |
| Dimensions(L*W*H)(mm) | 2100×1500×2200 | 2750×2180×2200 | 3600×2800×3150 |
Washing part
Rotary pan is made of stainless steel 304.The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.
Filling part
The way of filling is gravitation filling. The filling valve is adopted best stainless steel 304.The structure of filling valve is reasonable, the amount is correct.When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles.
Capping part
The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can stop the machine when lacking the cap and also avoid the situation that there is bottle without cap. The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap.
Our Service
1) One year warranty for the whole system.
2) Free equipment installation and debugging.
3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
4) We can provide internship service and help you train the operator and mechanic.
5) Free beverage production technology and process configuration.
6) We can help you to design the product line, workshop and provide turn-key project.
|
