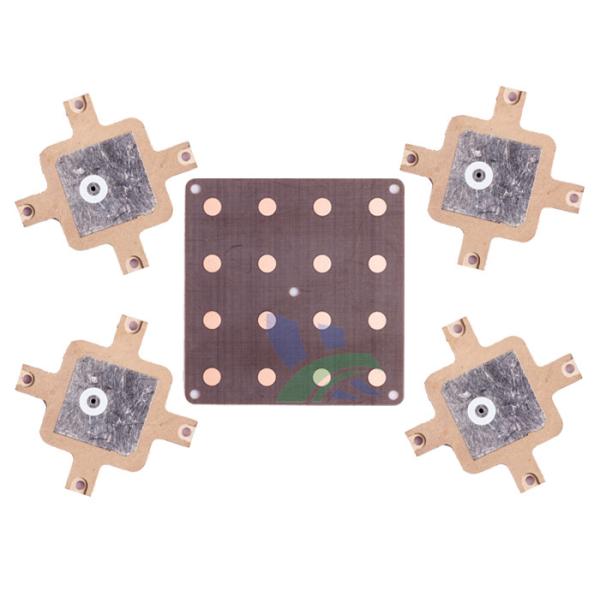

High Frequency Rogers Pcb With Microwave Widely Used In Antenna and RF System

High Frequency Rogers Pcb With Microwave Widely Used In Antenna and RF System

Quick Detail :

Features:

Rogers pcb multilayer pcb with high frequency can improvide the products quality ,with high techolonogy treatment improve the life cycle of the products .Immersion gold surface finish make the pcb 's conductive performance enhancements. Multilayer pcb design ,the precision of the pcb improves much more better . Low dielectric : 3 dielectric conductivity much more precision . High Frequency founction used in RF microwave feilds .

Parameter:

Description :

RT/duroid® Laminates

RT/duroid high frequency circuit materials are filled PTFE (random glass or ceramic) composite laminates for use in high reliability, aerospace and defense applications. It aslo used in RF Mcrowave wireless Antenna , microwave radio . It announced TerraGreen, a halogen-free, ultra-low loss, RF/microwave/high-speed material. TerraGreen is engineered for such high-performance applications as power amplifier boards for 4G LTE base stations.

High Thermal Performance

• Tg of 200 (DSC), 230°C (DMA)

• Low CTE for reliability

• Lead-free Compatible & Rhos Complaint

• UV Blocking and AOI Fluorescence

• Copper Foil Cladding: Grade 3 (HTE),1/2,1 and 2 oz. Foil Options: Reverse treat

Key Benefits:

• High dielectric constant for circuit size reduction
• Low loss. Ideal for operating at X-band or below
• Tight εr and thickness control for repeatable circuit performance

Typical Applications:

• Space Saving Circuitry
• Patch Antennas
• Satellite Communications Systems
• Power Amplifiers
• Aircraft Collision Avoidance Systems
• Ground Radar Warning Systems
• Datalink on cable systems
• Remote meter readers
• Power backplanes
• LMDS and wireless broadband
• Base station infrastructure

Production Description :

Competitive Advantage:
1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .


What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.

Xinchenger Electronics co.,Ltd established in 2009,we have committed ourselves to manufacturing various of printed circuit boards.

We have accumulated abundant experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena so on and so forth. Our company's sufficient stocks of hi-frequency pcb materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies like communication device,Electronics,Aerospace,Military industry to meet our worldwide customers with high quality. Furthermore,we also keen on helping customers shorten the period of production development and 24 hours of sample service is available.

Since the day of company foundation we continuously engaged in researching special and high precision printed circuit boards with the strong production capability of 2 to 28 layers of highly precise impedence,multi-layer blind buried,multi-layer mix-compression,high TG, copper substrate,Ceramic substrate PCB. We emphasize the significance of traning program for every single staff in the company even grass-roots employees which becomes the most competitive factors to excel from others,our company have many experienced and professional teams from management to production line,30% are highly educated among the total amount of employees,advanced engineers and senior technicians are up to 80 people.

With advanced foreign technology supports and domestic 3G/4G device manufacturer in microwave pcb field which lead our experienced hi-frequency researching team to one step ahead of the line of printed circuit board business,we are honored to obtain sound reputations over our worldwide customers on the basis of fine qulity,prompt delivery,satisfied after sales service for may years and we assure our customers that we will return the favors with more and more superior products in the near future.
