Hard Coating LCD Panel Types 9 Inch EJ090NA-01B Fit HJ090NA-01K For Lenovo IdeaTab A2109A-F

Categories LCD Panel Types
Brand Name: INNOLUX
Model Number: HJ090NA-01K
Place of Origin: KOREA
MOQ: 1
Price: Pls contact email:sales1@megasourceel.com
Payment Terms: T/T, Western Union,PAYPAL,BANK TRANSFER
Supply Ability: 1000
Delivery Time: STOCK
Packaging Details: STANDARD PACKING
Panel Type: a-Si TFT-LCD , Panel
Panel Size: 9.0 inch
Resolution: 1280(RGB)×800 , WXGA
Display Mode: TN, Normally White, Transmissive
Active Area: 193.92×121.2 mm
Outline: 206.76×135.06×5 mm
Surface: Hard coating
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Colors: 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 70%
Response Time: 10/15 (Typ.)(Tr/Td)
Viewing Angle: 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type: 3S8P WLED , Without Driver
Signal Interface: LVDS (1 ch, 6/8-bit) , 51 pins
Input Voltage: 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Operating Temperature: -10 ~ 50 °C
Storage Tempera-40 ~ 80 °Cture: -20 ~ 60 °C
ROHS: Y
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hard Coating LCD Panel Types 9 Inch EJ090NA-01B Fit HJ090NA-01K For Lenovo IdeaTab A2109A-F


EJ090NA-01B fit HJ090NA-01K for Lenovo IdeaTab A2109A-F 9 inch LCD Screen Panel

1,INNOLUX HJ090NA-01K Mechanical Features

Panel Size :9.0 inch
Dot Resolution :1280(RGB)×800 (WXGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :167 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0505×0.1515 mm (H×V)
Pixel Pitch :0.1515×0.1515 mm (H×V)
Weight :178g (Typ.)
Surface :Hard coating
Active Area :193.92×121.2 mm (H×V)
Bezel Area :196.72×124.00 mm (H×V)
Outline Dimension :206.76×135.06 mm (H×V)
Outline Depth :3.6/5.0 (Typ./Max.) mm
Landscape or Portrait :Landscape type
Touch Panel :Without

2,INNOLUX HJ090NA-01K Optical Features

Display Mode :TN, Normally White, Transmissive
Brightness :250 cd/m² (Typ.)
Contrast Ratio :700 : 1 (Typ.) (Transmissive)
Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut :70% NTSC (CIE1931)
Response Time :10/15 (Typ.)(Tr/Td)
Viewing Angle :70/70/70/50 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :12 o'clock
White color Chromaticity :Wx:0.310; Wy:0.330
White Variation :1.33/1.43 (Typ./Max.)(9 points)

3,INNOLUX HJ090NA-01K Electronics Feature

Vertical Frequency :60Hz
Reverse Scan :Yes (U/D, L/R)

4,INNOLUX HJ090NA-01K Backlight System

Lamp Position :Edge light type
Lamp Type :WLED
Lamp Amount :3S8P
Lamp Shape :Array
Lamp Life Time :20K(Min.) (Hours)
Lamp Voltage :9.3/10.2V (Typ./Max.)
Lamp Current :240mA (Typ.)
Lamps Power Consumption :2.24W (Typ.)
Interface Type :Included in panel signal interface
Lamp Driver Board :No

5,INNOLUX HJ090NA-01K Signal Interface

Signal Category :LVDS
Signal Class :LVDS (1 ch, 6/8-bit)
Input Voltage for Panel :3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Input Current for Panel :62.5/38.5/0.52/0.52mA (Typ.)(IDD/AIDD/IGH/IGL)
Panel Power Consumption :0.65W (Typ.)
Interface Type :Connector
Signal Interface :BrandModelPin PitchPinsAmountConfiguration
VigorconnF82151-H1210PI0.3 mm51 pins1 pcs

6,INNOLUX HJ090NA-01K Packing Form

Amount per Box :30 pcs
Box Size :530×355×255 mm (L×W×H)
Box Gross Weight :7.88±0.39Kgs

Model Number:HJ090NA-01K

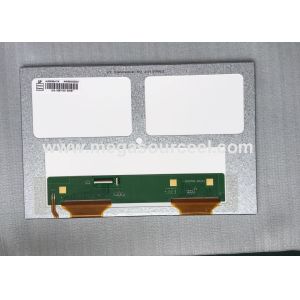

Details Picture for EJ090NA-01B fit HJ090NA-01K for Lenovo IdeaTab A2109A-F 9 inch LCD Screen Panel
