| Categories | 3 Pin Transistor |
|---|---|
| Brand Name: | Anterwell |
| Model Number: | 2SA1943 |
| Certification: | new & original |
| Place of Origin: | original factory |
| MOQ: | 20pcs |
| Price: | Negotiate |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs |
| Delivery Time: | 1 day |
| Packaging Details: | Please contact me for details |
| Collector-base voltage: | -230 V |
| Collector-emitter voltage: | -230 V |
| Emitter-base voltage: | -5 V |
| Collector current: | -15 A |
| Base current: | -1.5 A |
| Collector power dissipation: | 150 W |
| Junction temperature: | 150℃ |
| Storage temperature: | -55~150 ℃ |
| Company Info. |
| Anterwell Technology Ltd. |
| View Contact Details |
| Product List |

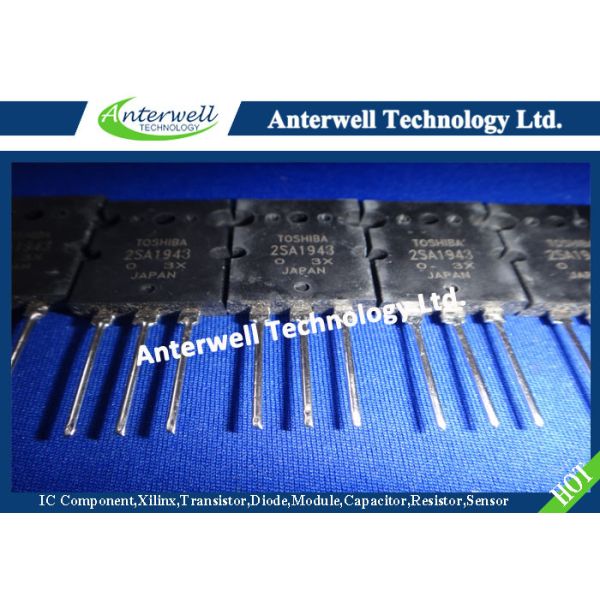

Silicon PNP Power Transistors 2SA1943
DESCRIPTION
·With TO-3PL package
·Complement to type 2SC5200
APPLICATIONS
·Power amplifier applications
·Recommended for 100W high fidelity
audio frequency amplifier output stage
PINNING
| PIN | DESCRIPTION |
| 1 | Emitter |
| 2 | Collector;connected to mounting base  |
| 3 | Base |
CHARACTERISTICS Tj=25℃ unless otherwise specified
| SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
| V(BR)CEO | Collector-emitter breakdown voltage | IC=-50mA ;IB=0 | -230 | V | ||
| VCEsat | Collector-emitter saturation voltage | IC=-8A IB=-0.8A | -3.0 | V | ||
| VBE | Base-emitter voltage | IC=-7A ; VCE=-5V | -1.5 | V | ||
| ICBO | Collector cut-off current | VCB=-230V; IE=0 | -5 | μA | ||
| IEBO | Emitter cut-off current | VEB=-5V; IC=0 | -5 | μA | ||
| hFE-1 | DC current gain | IC=-1A ; VCE=-5V | 55 | 160 | ||
| hFE-2 | DC current gain | IC=-7A ; VCE=-5V | 35 | |||
| fT | Transition frequency | IC=-1A ; VCE=-5V | 30 | MHz | ||
| COB | Collector output capacitance | f=1MHz;VCB=-10V | 360 | pF |
 hFE-1 classifications
| R | O |
| 55-110 | 80-160 |
PACKAGE OUTLINE


|
                                 |
