| Categories | CNC Router Machine |
|---|---|
| Brand Name: | BLUE ELEPHANT |
| Model Number: | ELE1325 |
| Certification: | CE, ISO9001, SGS, CIQ |
| Place of Origin: | Jinan City, Shandong Province, China |
| MOQ: | 1 set |
| Price: | US $5,999 - 9,999 / Set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Set/Sets per Month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | Standard marine export plywood case |
| Voltage: | AC380V/50/60Hz,3PH (Option: 220V) |
| Dimension(L*W*H): | 3200X2100X1980mm |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| X,Y,Z Working Area: | 1300x2500*200mm |
| Spindle power: | 4.5 kw HSD air cooling spindle |
| Inverter: | 5.5kw Fuling Inverter |
| Control system: | DSP A11 control system |
| Table structure: | T-slot&vacuum table |
| Transmission: | Taiwan TBI Ball Screw |
| Guide rail: | Hiwin 20# Square Guide Rail |
| Spindle Speed: | 0-18000RPM |
| Drive motor: | Stepper |

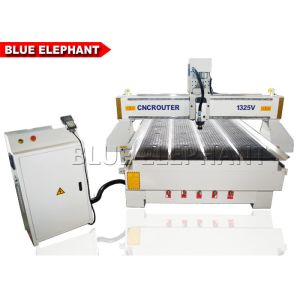

1325 wood boring machine , cnc engraving machine for model producing
Features:
T-slot&vacuum table
Separate control box
Main parts:
Technical Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| Spindle | 4.5kw HSD air cooling spindle |
| Inverter | 5.5kw Fuling Inverter |
| Motor driver | Stepper |
| Spindle Speed | 0-18000RPM |
| Control System | DSP A11 |
| Table Surface | T-slot&vacuum Table |
| X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Lubrication system | Manual |
| Command Language | G Code |
| Computer Interface | USB |
| Flash Memory | 512M(U Disk) |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Furniture:ideally suitable for processing cabinet door,wooden door,solid
wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed
compound,etc.
Packaging and shipping:
1. Outside Package:Standard export wooden case .
Please contact us ,
So we can help you select the right system to meet your needs and
fit your budget !
|
