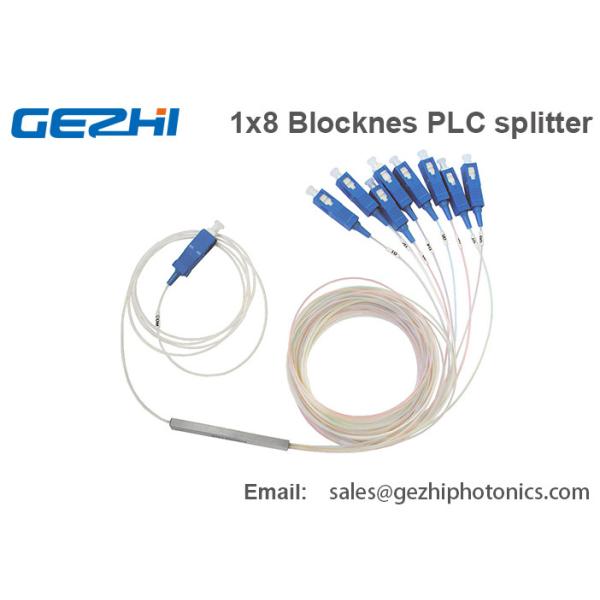

1*8 Optical Fiber PLC splitter Blockness type Planar Light Circuit splitters

1*8 Optical Fiber splitter Blockness type Planar Light Circuit splitters

GEZHI Planar Light Circuit (PLC) Splitters are fully passive optical branching devices that exhibit uniform signal splitting for the most advanced optical networks. These planar silica waveguide devices are packaged in small form factor housings to offer compact management into GEZHI modules and splice trays. Bend insensitive, reduced water peak singlemode fiber is used to provide low bending loss in applications which require tight radius or significant handling by the technician.

These PLC splitters are manufactured and tested to GR-1209/1221 to provide the high performance and reliability needed in the outside plant environment. Applications for the PLC splitters include all FTTH network architectures (GPON, BPON, EPON), Passive Optical LAN and CATV.

Fiber PLC Splitter Features:
♦ Good uniformity and low insertion loss

♦ Low Polarization Dependent Loss

♦ Excellent Environmental Stability

♦ Excellent Mechanical

♦ Stability Telecordia GR-1221 and GR-1209

♦ Components through TLC-Certified,Conform to YD1117-2001

Fiber PLC Splitter Applications:
♦ Fiber to The Point (FTTX)
♦ Fiber to The Home (FTTH)
♦ Passive optical networks(PON)
♦ Local Area Networks (LAN)
♦ Cable Television (CATV)
♦ Test Equipment

1x8 PLC Splitter with SC/PC Specification

Parameters	1×2	1×4	1×8	1×16		1×32	1×64	1×128
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7		16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.0		1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.1	0.1	0.1	0.20		0.25	0.30	0.4
Return Loss (dB)(P/S Grade)	55/50	55/50	55/50	55/50		55/50	55/50	55/50
Directivity (dB)	55	55	55	55		55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.3		0.5	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5		0.5	0.5	0.5
Operating Temperature (℃)	-40～80
Storage Temperature (℃)	-40～85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4		50×7×4	50×7×4	60×12×4	N/A
Module Dimension (mm)	100×80×10				120×80×18	141×115×18
Mini-Module Dimension (mm)	60×4×4	60×7×4	60×7×4		60×12×4	80×20×6	100×40×6	N/A

1x8 PLC Splitter with SC/PC connector Dimensions

Telcordia 1209 & 1221 Test Results

Name of the test	Condition	Duration
Temperature- Humidity aging	85°C and 85% RH	7 days
Vibration	10 - 55Hz, 1.52mm double amplitude, in three axes	1 hour
Component Impact	Test Impact of 500g (mass ≤ 0.125kg), 1ms , half sine pulse	2 impacts
Temperature Cycling Test	-40 - 70°C, Ramp rate: 1°C /min, Dwell time > 15min	10 cycles
Temperature- Humidity cycling	-40 - 85°C , between 10°C and 23°C - 85% RH, at 85°C - 20%RH, between °C and 85°C - maintain a linear change in RH, below 10°C - uncontrolled RH	14 days
Water Immersion	43 ± 2°C , PH 5.5 ± 0.5	7 days
Fiber Side Pull test	0.23 kg load, 90° angle , 2 directions	5 seconds
Fiber Side Pull test	0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs	5 seconds

Compact design, suitable for installation in outdoor fiber distribution box

The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN get the blockless splitters together with GEZHI 16 outdoor fiber distribution box. Contact with sales@gezhiphotonics.comfor complete application.

Make to Order

PLC	Port Configutation	Package Style	Fiber Diameter (Input/ Output)	Connector (Input/Output)	Pigtail Length
PLC=PLC Splitter	102=1×2	ST=Steel tube, bare fiber	25=250μm	NO=None	15=1.5m
	104=1×4	MM=Mini module	90=900μm	SCA=SC/APC	20=2.0m
	108=1×8	FO=With fan-out	20=2.0mm	SCU=SC/UPC	30=3.0m
	116=1×16	ABS=Pigtailed ABS box	30=3.0mm	LCA=LC/APC	XX=Customized
	132=1×32	MP=Mini plug-in type		LCU=LC/UPC
	164=1×64	LGX=Standard LGX		FCA=FC/APC
	202=2×2	TR=Mounted on a Fiber Splice Tray		FCU=FC/UPC
	204=2×4	1U=1U 19” rack mount chassis		STA=ST/APC
	208=2×8			STU=ST/UPC
	216=2×16			X=Customized
	232=2×32
	264=2×64

Notes for above:

1. When package style is ST, fiber diameter could be only 25=250um, connector could be only NO=none.
2. When package style is MM & FO, fiber diameter could be only 900um.
3. When package style is AB, fiber diameter could be 90=900um, 20=2.0mm, 30=3.00mm for optional.
4. When package style is MP, LGX, TR and 1U, "fiber diameter for input/output" & "pigtail length" could be left out, as the specific product would be made according to its configuration.
