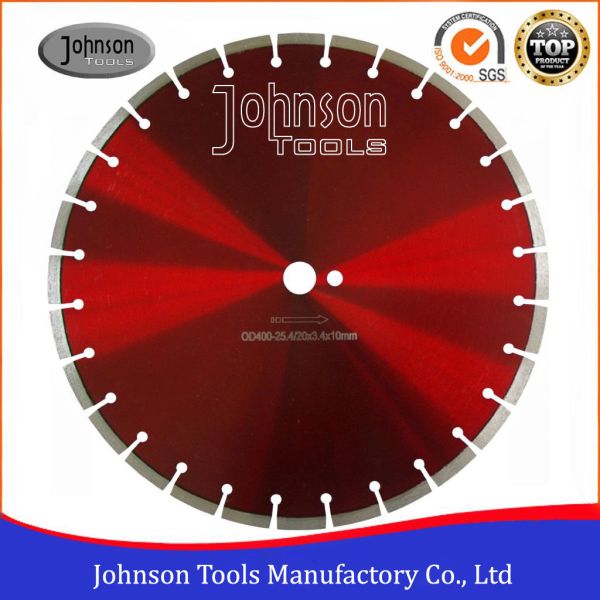

400mm Laser Welded Diamond Concrete Saw Blades for Dry Cutting Reinforced Concrete

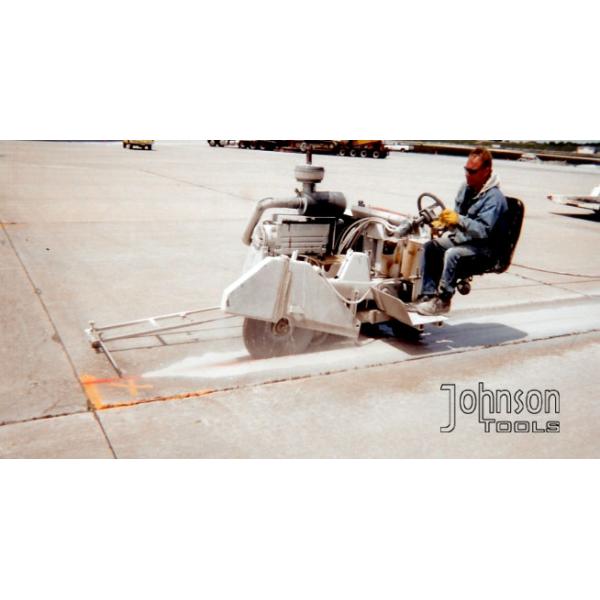

400mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.
Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.
Well exported to Europe, America, Africa, Australia and Asia market.
Specification
1. Diameter: 400mm
2. Segment thickness:3.4mm
3. Segment height: 10mm, 12mm, 15mm.
4. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
| Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
| 30" | 750 | 40 | 5.0 | 10/12/15 | 46 |

|
