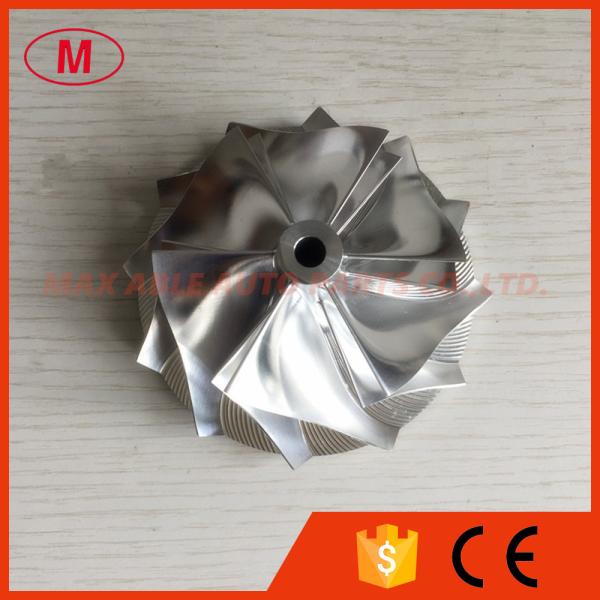

TD05H 451470-0001 66.65/84.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

. MODEL:TD05H Forward

2.TD05H 451470-0001 66.65/84.00mm 6+6 blades high performance turbo aluminum 2618/milling/ Billet compressor wheel for racing
3.Size:

Nose diameter:13.70mm

Inducer:66.65mm

Exducer:84.00mm

Tapered tip exducer :90.20mm

Tip height:6.37mm

Superback:2.70mm

Overall height:35.80mm

Bore size:6.50mm

bore type:through

Trailing angle:50 degree

Cutback:5.0

SP height angle:-1.00

Blades height:30.91mm

Splitter height:20.80mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

We can produce as your requirement.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
