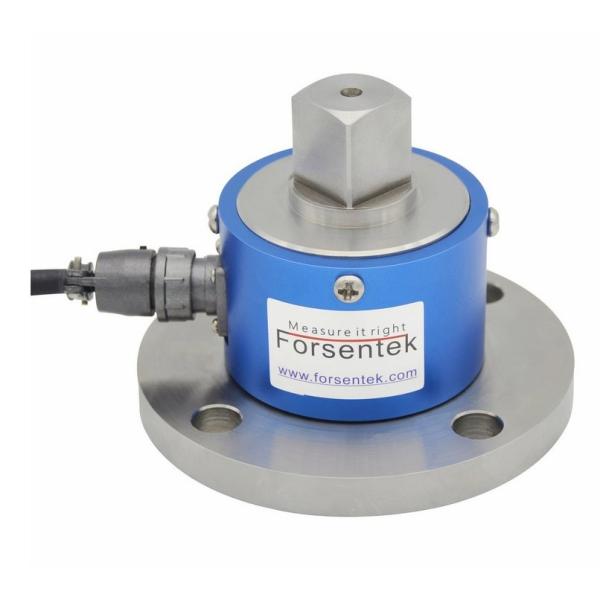

3/4" Square torque transducer 500NM 300NM 200NM 100NM 50NM 20NM torque sensor

Stationary torque transducer 500NM 300NM 200NM 100NM 50NM 20NM

torque sensor


Features

  • Stainless steel construction
  • Square drive to flange mounting,easy to install
  • Strain gauge technology,high accuracy
  • Non-rotating torque measurement

​torque transducer
Dimensions(Unit in "mm")
stationary torque transducer 20NM 50NM 100NM 200NM 500NM
reaction torque sensor
Specifications

Capacity500NM 300NM 200NM 100NM 50NM 20NM
Rated output1.5mV/V
Excitation3-15V
Zero balance±0.05mV/V
Nonlinearity±0.2% R.O.
Hysteresis±0.2% R.O.
Nonrepeatability±0.1% R.O.
Creep(10min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.02% R.O./oC
Temperature shift span±0.02% R.O./oC
Input resistance380±30 ohms
Output resistance350±10 ohms
Insulation resistance>5000M ohms
Ingress protectionIP50
Material of elementStainless steel
CableØ5*3000mm 4-core shieded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


Stationary torque transducer 500NM 300NM 200NM 100NM 50NM 20NM
torque trasnducer 500NM 200NM 100NM 50NM 20NM

torque measurement

Click here to download datasheet
