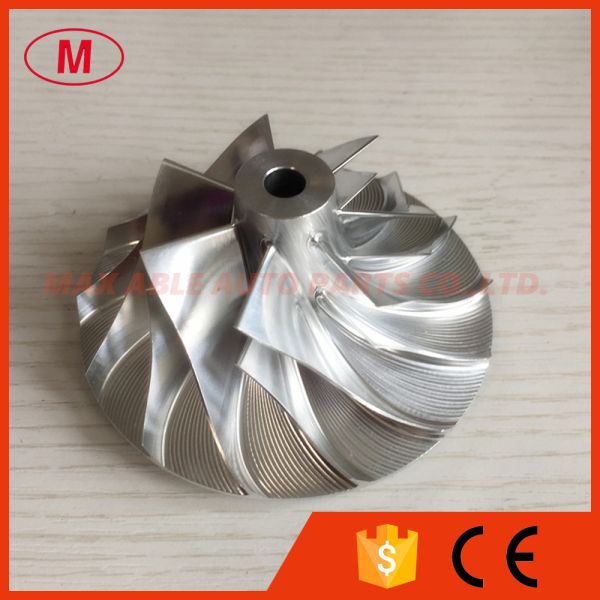

HX35 51.95/83.03 mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:HX35 forward

2. HX35 51.95/83.03 mm 7+7 blades turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose Diameter:16.93mm

inducer:51.95mm

Exducer:83.03mm

Tip height:5.69mm

Superback:5.01mm

Overall height:39.76mm

Bore size:7.00mm

bore type:through

Trailing angle:50 degree

Cutback:0.0mm

Blade height:28.58mm

Splitter height:18.50mm

SP Height angle:-8.20

7+7 BLADES

forward rotation

Tapered tip angle:0 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

All the billet compressor wheels have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
