Product Introduction:

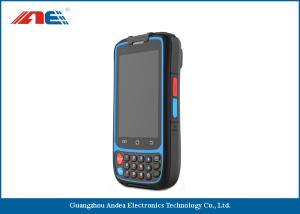

AH2201 HF Android handheld RFID reader is an industrial grade RFID mobile terminal, which is integrated with mid-range high performance RFID reader module, reading range up to 28cm (standard RFID card). With anti-collision algorithm, its identify speed can be up to 50 Pieces per second. We use 5200mAh lithium polymer battery to make sure it could work a long time so you don't need to charge oftenly.
Product Features:
| Technical Specification | ||
| Operating System | Android 7.0 | |
| CPU | Cortex A9 1.2GHZ (dual core) | |
| RAM / ROM | RAM: 1GB ROM: 4GB | |
| Display | 4.0inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine | |
| Keyboard | Number keyboard and function keyboard | |
| Touch Screen | Support multi-point capacitive touch screen, workable with glove | |
| Micro SD card | Support 32G MICRO SD card | |
| Audio | Support voice announment | |
| Wireless Communication | GPRS | GPRS, EDGE, 4-band 900/1800, 850/1900 |
| 4G | ||
| WIFI | Meet IEEE 802.11b/g | |
| Bluetooth | Meet Bluetooth 4.0 | |
| Indicator Light | Internet indicator light, charging indicator light | |
| Battery | Capacity | 5200mAh lithium polymer |
| Stand-by Time | When fully charged, close wireless communication functions and stand-by time is 200h and above | |
| Operating Time | >6h | |
| Charging Time | <4h | |
| RFID Parameters | ||
| Compatible Protocol | ISO 15693 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 28cm (standard RFID card) | |
| Anti-collision Algorithm | Support | |
| Working Environment | ||
| Operating Temperature | -10℃~70℃ | |
| Storage Temperature | -20℃~85℃ | |
| Relative Humility | 10%~90% RH, no condense | |
| Physical Parameters | ||
| Gross Weight | <320g | |
| Dimension | 160*76*32 ± 2mm | |

Product Application:
RFID ticket identification, assets management, warehouse inventory, etc.
|   |
