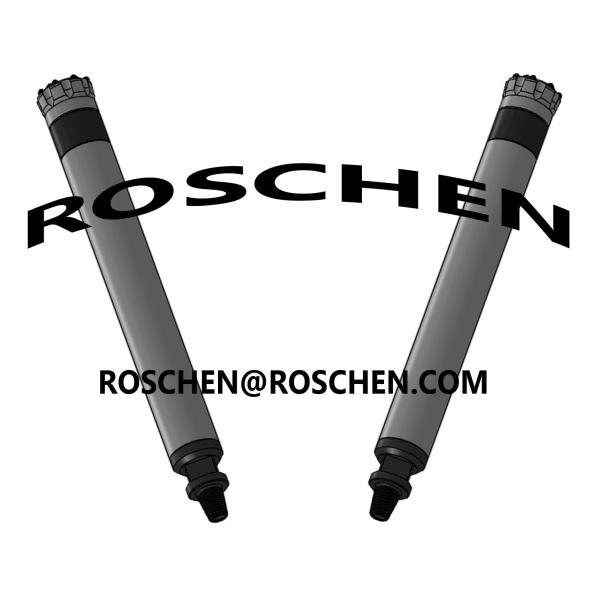

SD10A SD10 Down The Hole Hammer , Hydrology and water well drilling down hole hammer

SD10A DTH Hammer SD10 Down The Hole Hammer For Hydrology and water well drilling

Pneumatic impactor

Pneumatic impactor, also known as pneumatic impactor, pneumatic dive hammer. To the compressed air as the power medium, the use of compressed air energy to produce continuous impact load hole at the end of power equipment.

Subject: Drilling Engineering

Glossary: Pneumatic Impactor, Down The Hole Hammer

Pneumatic percussion hammer, pneumatic down-tme-hole hammer

Compressed air at the same time can also doubles as a wash hole medium. Pneumatic impactor has high wind pressure and low wind pressure, valve type and no valve type of points. Usually the pneumatic impactor directly connected with the carbide rod tooth drill to impact the way rock, low-speed rotation is not coring the full drilling. Mainly used in hydrological wells drilling, no core geological drilling, geological disaster prevention and control projects and mine drilling and other fields. Suitable for use in gravel and hard rock formations, specially configured drill bits can also be used in soft soil. Mechanical drilling speed is generally much higher than the hydraulic impactor drilling, but need to be equipped with a larger capacity of the air compressor, fuel consumption, noise, dust pollution. Drilling depth by the groundwater level, the greater the impact of water.

SD10A DTH Hammer (SD10)

Description:

It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.

It has the following advantages:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

Technical Parameters of SD10 DTH Hammer:

For more information please contact:

ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED

Skype: ROSCHEN.TOOL , ROSCHEN_GROUP

WeChat: +86-137 6419 5009 ; +86-135 8585 5390

WhatsApp: +86-137 6419 5009 ; +86-135 8585 5390

Email: roschen@roschen.com ; roschen@roschen.net

Website: http://www.roschen.net ; http://www.roschen.cn

http://www.roschen.com ; http://www.roschengroup.com

 ROSCHEN GROUP

ROSCHEN Group has the world class advanced equipment like 12000 tons forging, metal processing plant, heat treatment workshop, numerical control plant, Advanced five-axis machining center, etc. professional technical and skilled team to ensure mining, mineral tools, equipment products quality stable and reliable.

ROSCHEN Group Limited is a manufactory with years of research and development for the mining, mineral tools, equipment. We are capability to produce high performance world class products and control excellent quality. Our main product includes tricone bit, diamond core bits, drill pipe, core barrel, TCI tricone bit, mill tooth tricone bit, RC hammer, DTH bit, etc.

ROSCHEN Manufactory PROCESS

ROSCHEN Sales Value Growing Up!

ROSCHEN'S MISSION

1. Strive to create and supply Best quality products for the industry that last longer than the average products.

2. Provide excellent service for our clients.  24 hour-7 days /week schedule to get our clients what they need – FAST.
