NEMA34 86BLF3A70-483 48DC 3000RPM 0.7N.M 220W Brushless DC Motor

NEMA34 86BLF3A70-483 48DC 3000RPM 0.7N.M 220W Brushless DC Motor

NEMA34 86BLF3A70-483 48DC 3000RPM 0.7N.M 220W Brushless DC Motor
NEMA34 86BLF3A70-483 48DC 3000RPM 0.7N.M 220W Brushless DC Motor
Categories Brushless DC Motor
Place of Origin: Changzhou
Brand Name: Changyi
Certification: GSG is9000
Model Number: 86BLF3A70-483
Voltage: 48v
Rated speed: 3000rpm
Rated torque: 0.7N.m
Power: 220w
Current: 6.1A
Weight: 1.85kg
Length: 97mm
MOQ: 100pcs
Price: USD48.33/PCS
Packaging Details: CARTON
Delivery Time: 20-25 WORKING DAYS
Payment Terms: T/T IN ADVANCE
Supply Ability: 5000 A MONTH
Contact Now
Company Info.
Changyi Industrial (Shanghai) Co.,Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NEMA34 86BLF3A70-483 48DC 3000RPM 0.7N.M 220W Brushless DC Motor

Brushless DC Motor NEMA34

86BLF3A70-483

Specification:


MODEL

86BLF3A70-483

Voltage (VDC)

48

Rated speed(rpm)

3000

Rated torque(N.m)

0.7

Rated current(A)

6.1

Power(W)

220

Peak torque(N.m)

2.1

Torque constant(N.m/A)

0.115

Length(mm)

97

Weight(kg)

1.85


Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

Figure:

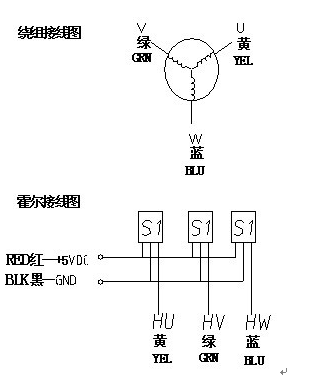

Wiring Diagram:
