Active poe splitter 10/100M ieee802.3af 9V/2A out

Overview
TSD-PD09, 18W indoor PoE splitter,it is an economical and practical PoE remote power equipment, with excellent performance and developed in accordance with the IEEE802.3at/af standard. Connect with PoE injector or standard POE switch by Cat5 cables.It helps to expand home networks, office networks, and is not restricted by layout of power line.
It is a kind of low power poe splitter can supply power and data forhouseholdip camera, wireless AP andsmart access controller.
How It Works?
Your IP cameras have two connections, one for Internet cable while the other is for 9V DC Power;
The PoE Splitter has two ends. At one end there are two connectors, a male RJ45 connector, and a 9V DC connector. All you need to do is to connect those two connectors to your IP camera, and then your IP camera can be magically Powered by a single internet cable from a PoE switch. Getting rid of limitation of the power supply length. This PoE splitter support a maximum range of 100 meters cable.
Features
1. Support IEEE802.3at/af PoE standard
2. Provides DC power Via pins 4 / 5(+), 7 / 8(-) or 1(+), 3/6(-)
3. Input 100V-240V AC, 50HZ-60HZ
4. DC5V output, used for various small network devices.
5. upport 10/100M Data Transmission
6. Circuit Insulation blocking, effective protection of powered device.
Application
* HD monitor transmission and power supply
* Wireless AP layout transmission and power supply
* Network telephone transmission , intelligent house and home system
* Intelligent transportation supervisory system(ITS)
* High-speed Way supervisory/Tele-Communication System
* Security protection system, TV medical treatment
* Long-distance Muti-media Schooling, Campus monitoring
* Long-distance broadcast television transmission system
* High-building Security Protection, Military Tele-Com projects
Ordering Information
Product Model: TSD-PD09
Product Description: 10/100M PoE Splitter Cable Compatible with IEEE802.3at/af (18W ) DC9V/2A Output

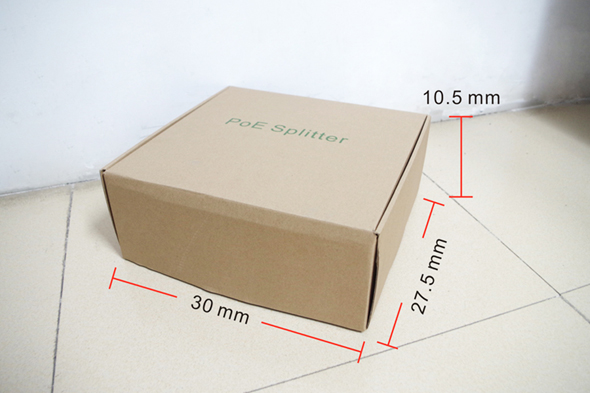

Package Size
50 pieces in one carton Carton Weight:0.2kg
Package List
