| Categories | CZ Purlin Roll Forming Machine |
|---|---|
| Brand Name: | Sussman |
| Model Number: | RF-ST |
| Certification: | CE, SGS, ISO |
| Place of Origin: | Wuxi, China |
| MOQ: | 1 set |
| Price: | negotiable |
| Supply Ability: | 10 sets/month |
| Delivery Time: | 60 days after deposit |
| Packaging Details: | Film and steel |
| forming speed: | 8-10m/min |
| forming stations: | 18 stations |
| drive way: | chain transmission |
| material thickness: | 2-3mm |
| roller material: | GCr15 |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

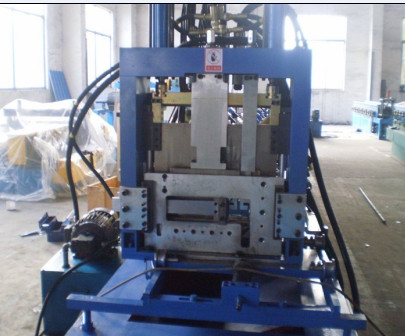

Automatic Change Size C Z Purlin Making Machine with Automatic PLC Control Hydraulic Punching
Technical Parameter
Products specification: C80-300. Thickness: 2-3mm. Yield strength: 250Mpa max.
Running speed: 0-12m/min.
Main shaft material: 45# steel, Q&T treatment
Main axis diameter: ¢75mm
Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity: HRC58-62.
Roller groups: 15 groups main rollers
Levelling roller: 7 rollers levelling device
Main motor power: 11KW;
Hydraulic station motor power: 5.5KW
Punching station: 4 punch device
Electrical control system: Whole line adopted PLC control, Panasonic PLC.
Cutting method: Hydraulic powered, automatically cut to length after roll forming
Cutting mold material: Cr12 quenching treatment
Uncoiling: by 3ton passive uncoiler
Machine dimension: 11.5m L X 1.2 m W X 1.0 m H
Machine weight: about 8 tons.
Working Flow
Decoiling - Levelling - Punching - Roll Forming - Cutting -Out table

Machine Components
| S.N | Equipment name | Quantity |
| 1 | 3T manual uncoiler | 1 set |
| 2 | Levelling device | 1 unit |
| 3 | Servo feeding | 1 unit |
| 4 | Pre-cutting | 1 unit |
| 5 | Punching die set For bottom notches, dimple screws holes, round holes and top notches | 4 units |
| 6 | Main roll forming machine | 1 set |
| 7 | Main drive | 1 unit |
| 8 | Cutting unit | 1 set |
| 9 | Hydraulic station | 1 set |
| 10 | Control system ( including control cabinet) | 1 set |
| 11 | Out put rack | 1 sets |
Machine Photo






|   |
