| Categories | Bottomer Machine |
|---|---|
| Brand Name: | Tecon |
| Model Number: | HD4913B |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | negotiation |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 16pcs per year |
| Delivery Time: | 3-5 months after received your payment |
| Packaging Details: | Wooden case |
| Electrical system: | Schneider, France |
| Bearing: | (NSK, Japan) No Special Gear |
| Bag Type: | For Cement, Chemicals, Foods, Milk Powder |
| Output: | 35 - 50 million bags/year |
| Paper Reel Racks: | 2 - 4 paper layers, with one extra PE / PP film available |
| Sealing & Cutting: | Heat-Sealing Heat-Cutting |
| Paper Thickness: | Normal Specification Paper |
| Printing style: | Flexo printing, 4 colors |
| Company Info. |
| Tecon Package Machinery Limited |
| View Contact Details |
| Product List |

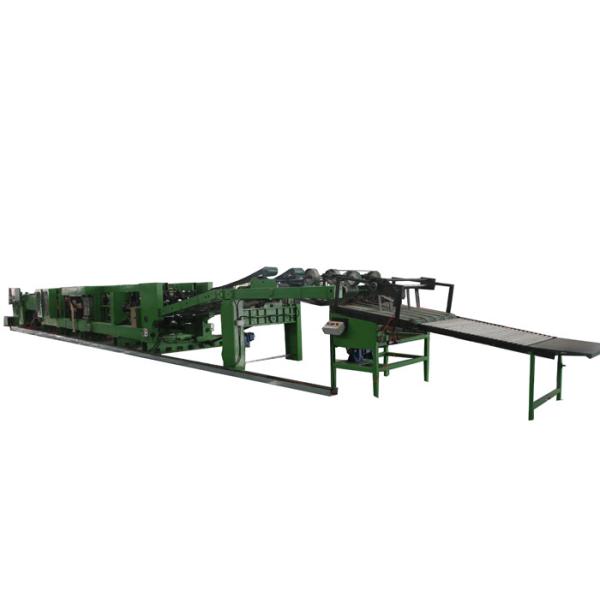

Auto Multi - step Cut Paper Cement Bag Making Machine with Servo System
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 2-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with
Photoelectric & Pneumatic control
system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters of our production line:
HD4913B Bottomer Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity | MAX. 95% |
Number required | 1 unit |
Model name | HD4913B |
Performance
Speed | 80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~130mm |
Bottom open width | 200~380mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~250mm |
Valve sheet width | 120~170mm |
Main drive motor | 33kw |
Total weight | 22.7T |
Size of whole set | 21.3m×2.3.m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the production line
HD4913B Bottomer Machine
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 (Schneider, German) |
Vacuum-pump | 1 (Schneider, German) |
