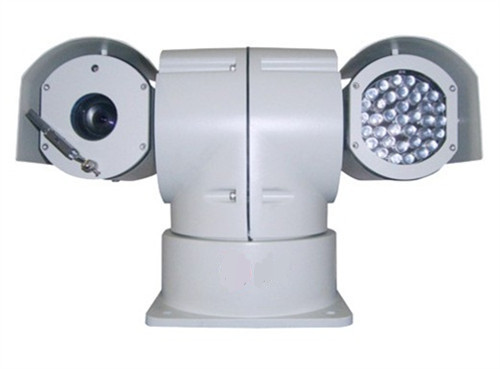

Network Speed Dome Camera , High Resolution IR PTZ Camera Two Head

Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Max. Image Resolution:

1920×1080

Frame Rate:

50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)

60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)

Image Compression:

H.264 / MJPEG

ROI encoding:

Support 2 areas with adjustable levels

Audio Compression:

G.711ulaw/G.711alaw/G.726/MP2L2

Protocols:

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS,

DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users:

Up to 20 users

Dual Stream:

Support

Mini SD Card:

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

User/Host Level:

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures:

User authentication (ID and PW), host authentication (MAC address)

EZVIZ:

Support

Camera

Image Sensor:

1/2.8" Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On)

B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On) 0 lux with IR

Color : 0.02 lux (F1.4, 1/1 sec, 50 IRE, AGC On)

B/W : 0.002 lux (F1.4, 1/1 sec, 50 IRE, AGC On) 0 lux with IR

White Balance:

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Auto/Manual

S/N Ratio:

≥ 52dB

BLC:

ON/OFF

HLC:

Support

Smart defog:

Support

WDR:

Support

Shutter Time:

1-1/10,000s

Day& Night:

ICR

Digital Zoom:

16X

Privacy Masking:

2 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

Lens

Focal Length:

4.7-94mm, 20x

Zoom Speed:

Approx.3s(Optical Wide-Tele)

Angle of View:

58.3-3.2 degree (Wide-Tele)

Minimum Working Distance:

10-1000mm(Wide-Tele)

Aperture Range:

F1.6-F3.5

Client GUI

Camera Control:

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris,

preset calling

and programming, auto mode

Date & Time Display:

Time: Week: Date, 6 formats on the Client

Client:

Support iVMS-4200

Web Browser:

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

Pan speed

0.1°~60°/s

Pan preset speed

100°/s

Tilt speed

0.1°~40°/s

Tilt preset speed

80°/s

Pan angle

360° Continuously

Tilt angle

(-90° to+90°)

Preset

128

Cruise Tour

6, every cruise can have 16 preset maximum

Auto scan

4

Communication

TCP/IP

Relative humidity

90% without agglomeration

Work temperature

-30 to 65 deg. celius

Power supply

DC10.8-DC18V, or AC24V

Protection

IP66, TVS4000V, lightning protection, surge protection

Weight

6Kg
