| Categories | High Temperature Ovens |
|---|---|
| Brand Name: | ASLI |
| Model Number: | RHD |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 45 sets per month |
| Delivery Time: | 15~20 days |
| Packaging Details: | standard Export Poly Wood Case Packaging |
| Inner size: | Cutom Made |
| Material: | SUS 304# |
| Tempearture Range: | RT~500 Deg C |
| Analytic Accuracy: | 0.1 Deg C |
| Distribution: | 2.0 Deg C |
| Control Accuracy: | 0.5 Deg C |
| Control Method: | PID+SSR+Timer |

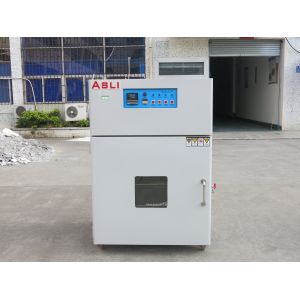

CE Certification laboratory high temperature ovens for Material Heating Test
Technical Details:
Model | RHD - 45 | RHD - 60 | RHD - 90 | RHD - 120 |
Inner Dimension W×H×D(mm ) | 450×400×400 | 500×600×500 | 600×900×500 | 800×1200×700 |
Outer Dimension W×H×D (mm ) | 650×900×550 | 700×1200×650 | 850× 1600×700 | 1200× 1680×900 |
Inner and Outer Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | |||
Temperature Range | RT~200°C, (300°C~500°C is special optional) | |||
Indication Resolution /Distribution Uniformity of Temperature | 0.1°C/ ±2.0°C;(When temperature is 100°C) | |||
Control Accuracy of Temperature | ±0.5°C; | |||
Temperature Rising Velocity | Temperature rising speed rate: RT~200°C; Approx. 35mins | |||
Control Method | Micro PID+SSR+Timer | |||
Nitrogen Device | Nitrogen in-out interface and pressure relief valve on the back of equipment, | |||
Storage Shelf | two layers | |||
Observation Glass Window | When temperature is RT-200°C ,with observation glass widow When temperature is 200°C-500°C ,without observation glass widow | |||
Power | AC 220V , 1& 3 Lines,50/60HZ ; AC 380 V ,3& 5 Lines,50/60HZ | |||
