| Categories | Color Doppler Ultrasound Scanner |
|---|---|
| Place of Origin: | China |
| Brand Name: | BIO |
| Model Number: | 5000N |
| MOQ: | 1 unit |
| Delivery Time: | 7 working - days since getting full payment |
| Payment Terms: | Credit card, Paypal, T/T |
| Supply Ability: | 100 units / month |
| Packaging Details: | Carton (42*43*15cm) 6kgs |
| Display: | 15”LCD monitor |
| Transducer frequency: | 2-12Mhz |
| Gray sacle: | 256 |
| Depth display: | ≥250mm |
| Dynamic range: | 0~120dB adjustable |
| Image storage: | ≥160G |
| Pseudo color encoding: | 16 kinds can optional |
| Gain adjusts: | 8 segments |
| Focus position: | dynamic electron focusing |
| Company Info. |
| Wuxi Biomedical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

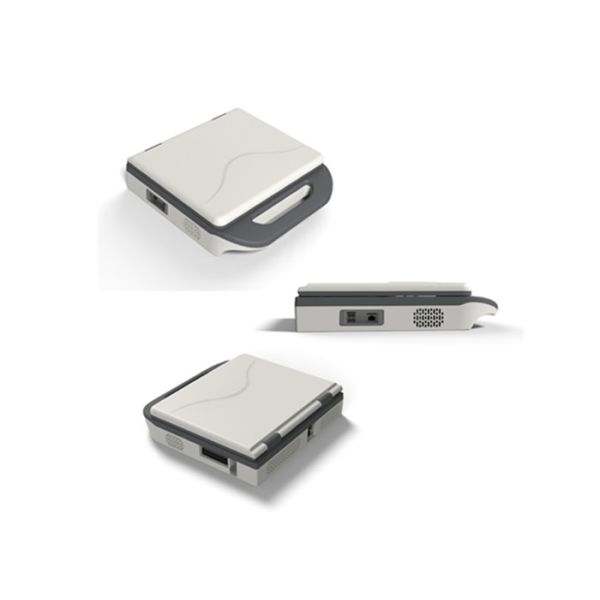

Panoramic Focusing Color Doppler Machine With 4D Function Optional
1.Easy to carry,small and light with comprehensive function
2.15” HD LED display. Angle
3.2D/CFM/PDI/PW/M scanning modes
4.Integrated ultrasonic network platform,support DICOM transmit
5.Big capacity built-in lithium battery
6.Embed computer system ensure stabilization safe and fast running.
Gray scale: 256 levels.
Depth display: ≥250mm;
Dynamic range: 0~120dB adjustable.
One-click optimization function.
Self-motion optimize function.
Image multiplying factor.
Optional
1 pc 7.5MHz linear probe
1 pc 6.5MHz transvaginal probe
1 pc 5.0MHz micro-convex probe
1 pc 5.0MHz transrectal probe
1 pc thermal printer
1 pc deluxe cart
Measurement & calculation
| B mode | Distance, circumference, area, volume, angle, ratio, and stenos rate |
| M mode | Heart rate, time, distance, speed, ratio, etc |
| Gynecology measurement | Uterus, cervix, endometrial, ovary, follicular |
| Obstetrics measurement | EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables) |
| Cardiology measurement | LV measurement |
| Urology measurement | Prostate volume, displacement volume, bladder capacity, and residual urine output |
| PW measurements | Time, speed, Heart Rate, RI, PI, etc |
| Other measurement | Slice volume measurement, hip joint angle measurement |
| Image storage | ≥160G |
| Image storage, video storage, cine loop | |
| Frequency conversion | 2MHz-12MHz(Depending on the probe) |
| Pseudo color encoding | 16 kinds can optional |
| Gain adjusts | 8 segments TGC, B/M/D/C is independently adjustable |
| E-zoom | magnify 2 times of real time image |
| Focus position | dynamic electron focusing |
| Running hours | ≥8h |
| Input power | ≤300VA |
| Host weight | about 6 kg |
| Host appearance size | 370 ×382×90mm |
| Application | Abdomen, gynecology, obstetrics, superficial organ, urologist, heart Mode and user defined model 1-4, total ten models |
| Particularly Recommended | USB. VIDEO .DICOME.FOOT SW |
| Output | USB Port:Our machine can connect the common printer . Used to print the measurement report page |
| Patient data | Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation |
| Reporting system | automatic report generation system, and can be full screen characters in both Chinese and English editor |
|
