| Categories | Parking Barrier Gate |
|---|---|
| Brand Name: | WONSUN |
| Model Number: | WST-1191 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | negotiation |
| Payment Terms: | T/T,Western Union,Money Gram, Trade Assurance,Paypal etc., |
| Supply Ability: | 1000 Sets/Month |
| Delivery Time: | 3-7 working days after received your payment |
| Packaging Details: | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Housing dimension: | 325 * 280 * 936 mm |
| Housing material: | 2mm cold roller steel plate |
| Housing color: | Bule, Orange, White, Yellow |
| Power supply: | AC 220V / 110V |
| Arm material: | Aluminum alloy |
| Arm length: | Max. 6mtrs |
| Company Info. |
| Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

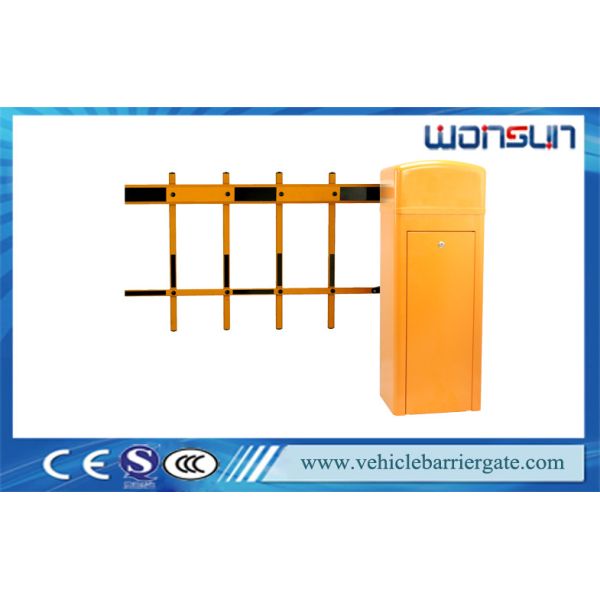

Manual release Parking Barrier Gate with Fan Colling Machine Used
For Toll Gate
Quick Detail:
Name: Parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1191 | Straight boom | 6m | 6 seconds |
WST1192 | Straight boom | 4.5m | 3 seconds |
WST11921 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11922 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11961 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11962 | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
Specifications
Model | WST1191 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
Parking Barrier Gate Packing List
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
|
