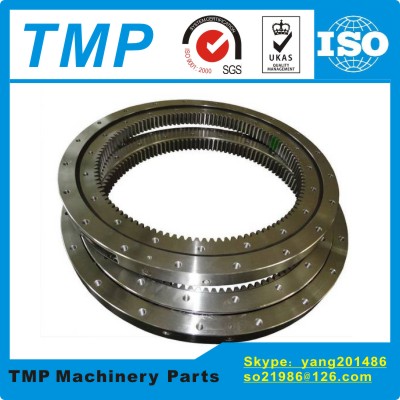

| VLI200744N Slewing Bearings (648x848x56mm) TMP slewing ring bearing turntable bearing | ||||||||||||||||||||
| A . Slewing Bearings Parameters | ||||||||||||||||||||
| Brand- | TMP | |||||||||||||||||||
| Model number- | VLI200744N | |||||||||||||||||||
| Inner ring(mm)- | 648 | |||||||||||||||||||
| Outer ring(mm)- | 848 | |||||||||||||||||||
| Width(mm)- | 56 | |||||||||||||||||||
| Weight(Kg)- | 51.5 | |||||||||||||||||||
| Materials- | GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo | |||||||||||||||||||
| Series- | VLI20 | |||||||||||||||||||
| Lubrication type- | Grease lubrication | |||||||||||||||||||
| Rolling elements- | Ball | |||||||||||||||||||
| Load direction- | Multi-load | |||||||||||||||||||
| Structure- | Four Point Contact Ball,Internal Gear Teeth | |||||||||||||||||||
| B . VLI200744N Slewing Bearings Specification Sheet | ||||||||||||||||||||
| Designation | Mass (kg) | Dimensions (mm) | Fixing holes | Fixing screws Fr kN | Gear teeth | Tooth force | Basic load ratings (axial) | Basic load ratings (radial) | ||||||||||||
| Da | di | Di | da | Width | La | na | Li | ni | d0 | m | z | Fz norm kN | Fz max kN | dyn. Ca kN | stat. C0a kN | dyn. Cr kN | stat. C0r kN | |||
| VLI200744N | 51.5 | 848 | 648 | 745.5 | 742.5 | 56 | 820 | 12 | 705 | 20 | 82.6 | 660 | 6 | 110 | 23.7 | 35 | 211 | 530 | 138 | 198 |
Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly costeffective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types: Four point contact slewing bearings and crossed roller slewing bearings. | |||||||||||||||||||
Four point contact bearing, light series 20, internal gear teeth,selectable internal clearance, sealed, lubrication nipple on circumference of ring without teeth | |||||||||||||||||||
| VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N; VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N; VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094; VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N; VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N; VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094; VSA250755N,VSA250855N,VSA250955N,VSA251055N; VSI250755N,VSI250855N,VSI250955N,VSI251055N; VSU250755,VSU250855,VSU250955,VSU251055; VA140188V,VA160235N,VA160302N,VA250309N; VI160288N,VI140326V,VI160420N; VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680; | |||||||||||||||||||
Product Application:Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine, wind turbines etc. |
