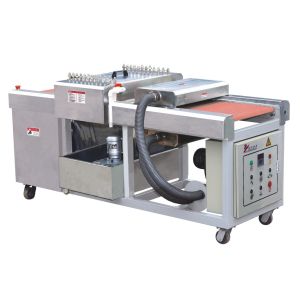

YX500 Small Washer Machine to clean and dry flat glass 25*25mm to 450*1000mm
ModelYX500Glass Washing Machineis designed according to the flat glass of which the thickness is 1mm-5mm. It adopts stepless speed regulating. Four groups of the brush roller for washing, three groups sponge roller for drying. And the structure of hot wind two-stage for drying. The flat glass is placed on the delivering roller. The flat glass is put on the transmission roller, and processed from input segment, washing segment and drying segment to output segment. The speed can be adjusted according to technical requirements. The operation buttons are assembled on the control panel. The whole set is artistic and simple operation.
Main technical parameter:
Measurement：2050mm×775mm×940mm
Weight：394KG
Input voltage/frequency：~380V/50HZ (as required)
Total power ：7.04KW
Power for the delivering roller：0.37KW
Power for the brush roller：0.75KW
Power for the fan：0.37KW
Power for the water pump：0.75KW
Work speed：1-4m/min
The max processing glass width：500mm
The mini processing glass dimension：25mm×25mm
|
