AC Servo Motor MK9 Cigarette Making Machines With Lower Noise

AC Servo Motor MK9 Cigarette Making Machines With Lower Noise

Assembling And Cigarette Making Machines Combination 50Hz 50KVA

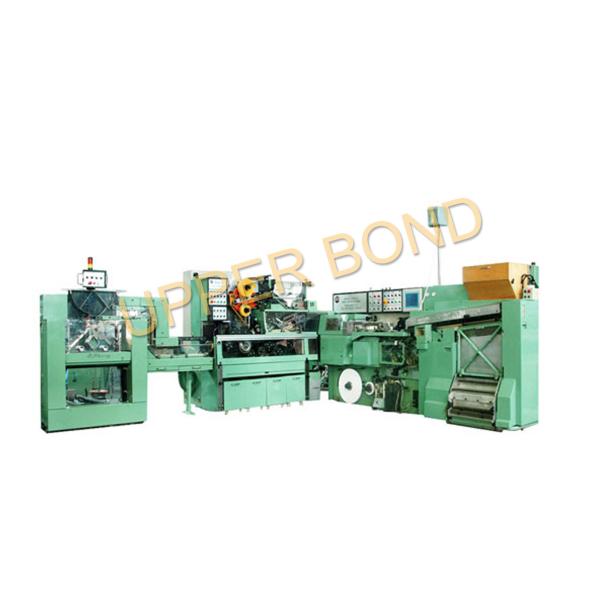

This combination consists of three machines: MK9 cigarette maker, MAXS plug assembler and HCF80 tray filler. It can be customized to produce king size cigarettes, super slim cigarettes or kreteks with different size. The cigarette weight can be inspected and the bad cigarettes can be rejected online automatically. This type of combination has been sold to Asia, Africa, Europe and North America, widely popular in the international market.

Highlights:

1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.

2. The complete suction system and high air pressure system .

3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.

4. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

5. Electric control system:

◆ control center: it adopts the SIEMENS PLC S7-300 series.

◆ weight controller: the microwave weight control system is adopted to avoid any harm to people.

◆ man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.

Main Parameters :

Making Process Requirements:
1, Ambient conditions
Temperature: 20℃--30℃
Relative humidity: 62％--68％
2, Paper bobbin
Tensile strength ≥0.85KN/m
Extensibility ＞1.6％
Humidity: 6％±1.5％
Joint number ＜1/1000 m
3, Width: 48±0.3 mm
Thickness: 0.04mm～0.05 mm
4, Cut tobacco
Grade: A
Humidity: 12.5％±0.5％
5, 5.5bar
6, Viscosity of VPA
For the maker: 2500mPa.s-5000mPa.s
For the assembler: 5000mPa.s-10000mPa.s
