SAMSUNG 17inch LTM170EU-L32 LCD Panel

Categories LCD Panel Types
Place of Origin: Japan
Brand Name: SAMSUNG
Certification: RoHS Compliant
Model Number: LTM170EU-L32
MOQ: 1 Pcs
Price: Pls Contact sales team
Packaging Details: MODULE
Delivery Time: stock
Payment Terms: T/T , Paypal, Western Union ,Escrow etc.
Supply Ability: 1000
Panel Model: LTM170EU-L32
Panel Brand: SAMSUNG
Descrition: a-Si TFT-LCD ,17.0 inch, 1280×1024
Panel Type: a-Si TFT-LCD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SAMSUNG 17inch LTM170EU-L32 LCD Panel

SAMSUNG 17inch LTM170EU-L32 LCD Panel

Specification for LTM170EU-L32:

LTM170EU-L32 Basic Information

Panel Model

LTM170EU-L32

Panel Brand

SAMSUNG

Descrition

a-Si TFT-LCD ,17.0 inch, 1280×1024

Panel Type

a-Si TFT-LCD

Operating Temperature

0 ~ 50 °C

Storage Temperature

-25 ~ 60 °C

LTM170EU-L32 Mechanical Features

Dot Resolution

1280(RGB)×1024 (SXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

96 PPI

Aspect Ratio

5:4 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.088×0.264 mm (H×V)

Pixel Pitch

0.264×0.264 mm (H×V)

Surface

Hard coating (3H)

Active Area

337.92×270.336 mm (H×V)

Bezel Area

341.6×274.0 mm (H×V)

Outline Dimension

358.5×296.5 mm (H×V)

Outline Depth

17.0±0.5 mm

Holes & Brackets

Side mounting holes (4-M3) on left, right bezel

Landscape or Portrait

Landscape type

Touch Panel

Without

LTM170EU-L32 Optical Features

Display Mode

TN, Normally White, Transmissive

Brightness

300 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (Transmissive)

Display Color

16.7M (6-bit + Hi-FRC)

Color Gamut

72% NTSC (CIE1931)

Response Time

1.3/3.7 (Typ.)(Tr/Td)

White color Chromaticity

Wx:0.313; Wy:0.329

White Variation

1.33 (Max.)(9 points)

Sunlight Readable

N

LTM170EU-L32 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

LTM170EU-L32 Backlight System

Lamp Position

Edge light type (Top and Bottom)

Lamp Type

CCFL

Lamp Amount

4 pcs

Lamp Shape

Straight

Lamp Life Time

50K(Min.) (Hours)

Lamp Voltage

650V (Typ.)

Lamp Current

3.0/6.5/7.0mA (Min./Typ./Max.)

Lamp Operating Frequency

40/60KHz (Min./Max.)

Lamp Startup Voltage

1450/1650V (Max.)(Ta=+25/0℃)

Interface Type

Connector

Lamp Driver Board

No

LTM170EU-L32 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (2 ch, 8-bit)

Input Voltage for Panel

5.0V (Typ.)

Input Current for Panel

1.0/1.2A (Typ./Max.)

Interface Type

Connector

Signal Interface

UJU - IS100-L30O-C23, Pitch:1.0 mm, Pin:30 pins

Below is some of our other LCD panel hot offer,pls check if you need any of them:

MT220WPM-N10

BOE

22.0"

1680×1050

TD043MGEA1

TPO

4.3"

800×480

COM35H3835XLC

3.5"

320×240

LTP283QV-F01

SAMSUNG

2.8"

240×320

COM35H3M73ULC

3.5"

480×640

LQ050W1LC1B

SHARP

5.0"

1024×600

COM27H2P23XLC

2.7"

240×320

COM27H2M90XLC

2.7"

240×320

LS035Y8DX06

SHARP

3.5"

480×800

LQ058T5AR04

SHARP

5.8"

400×234

NL2432HC22-40J

NLT

3.5"

240×320

LMS430HF28

SAMSUNG

4.3"

480×272

COM32T3M34ILX

3.2"

480×800

LS010B7DH01

SHARP

0.99"

128×128

PD035QX7

E Ink

3.5"

320×240

DX08D11VM0AAA

KOE

3.0"

480×800

COM43H4M10XTC

4.3"

480×272

NL4827HC19-05B

NLT

4.3"

480×272

LQ0DASA469

SHARP

4.7"

720×1280

LQ070T5DG01

SHARP

7.0"

854×480

TX09D40VM3CAA

KOE

3.5"

240×320

LQ050A3AD01

SHARP

5.0"

320×234

NL2432HC22-23B

NLT

3.5"

240×320

LS027B7DH01

SHARP

2.7"

400×240

H335VVN01.0

AUO

3.4"

480×854

COM35T3829XLC

3.5"

320×240

G084SN05 V5

AUO

8.4"

800×600

TX09D40VM3CBA

KOE

3.5"

240×320

H160QVN01.0

AUO

1.6"

320×320

LT040MDT9000

TOSHIBA

4.0"

480×854

LS037V7DW03

SHARP

3.7"

480×640

M240HV01 V.D

AUO

24.0"

1920×1080

L4S00242P00

Epson

2.8"

480×640

LS037V7DD06

SHARP

3.7"

480×640

TX09D30VM1CBA

KOE

3.5"

240×320

LQ043T1DG02

SHARP

4.3"

480×272

LQ048Y3DG01

SHARP

4.8"

800×480

LQ048Y3DG02

SHARP

4.8"

800×480

LMS480JC01

SAMSUNG

4.8"

1024×600

AMS317PN01

SAMSUNG

3.2"

360×640

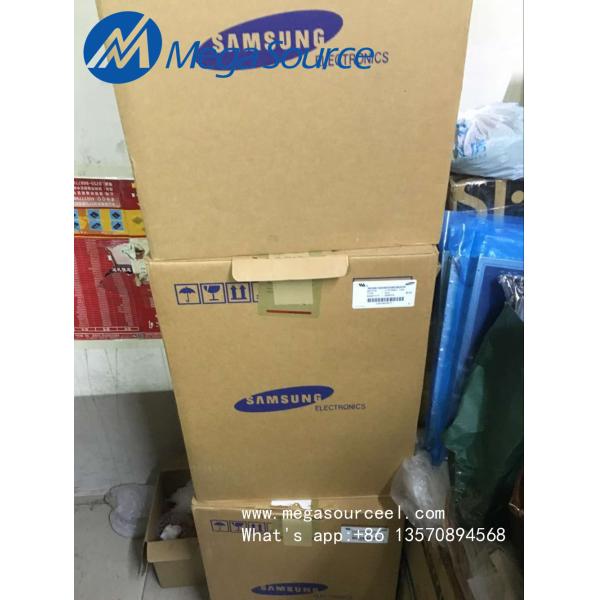

Quality SAMSUNG 17inch LTM170EU-L32 LCD Panel wholesale
