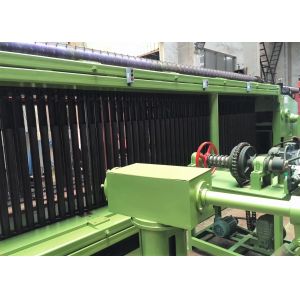

Automatic Heavy Duty Hexagonal Wire Netting Machine Width 2200mm

Automatic Heavy Duty Hexagonal Wire Netting Machine Width 2200mm

Quick Detail:

1) Mesh sizes: 15x18mm
2)Max netting width: 2200mm
3)Max galvanized wire diameter: 0.8mm
4)Power: 3kW
5)Theoretic output: 51m/hr

Descrition:

• JINLIDA is professional manufacturer, not trading company, we supply advanced machine to

oversea clients directly only. We can produce the machine as your requirement.

• Model GLL (T) is a light series of mesh weaving machines, including 7 different types of machines,

i.e. with which the galvanized hexagonal wire mesh of different apertures can be woven

• The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This series

of product include two types of machines, i.e. the single-head and the double-head machine

• The maximum weaving breadth of the single-head machine is 1.2m and that of the double-head

machine is 2.2m

• Separated from the middle, the double-head machine can weave two 1m wide meshes

simultaneously

• Type 1/2' and Type 3/4' machine can weave trapezoidal wire-mesh after necessary refitting
• This kind of wire-mesh is widely used as the skeleton of the asbestos shingle

Specifications:

1) Mesh sizes: 15x18mm
2)Max netting width: 2200mm
3)Max galvanized wire diameter: 0.8mm
4)Power: 3kW
5)Theoretic output: 51m/hr
6)Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7)Infrared ray safety protection system (option)
8)Automatic oil system

Competitive Advantage:

1. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to

process, so the quality can be ensured.

2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.

Jiangyin Jinlida Light Industry Machinery Co., Ltd., founded in 1998, has grown into a leading global GABION equipment provider. 80% of our products have been sold in more than 40 countries or regions, such as the RUSSIA,USA, UK, Canada, Taiwan area,Malaysia, Thailand, Italy, South Africa, North Africa, Iran, India, PH, VN, and Poland etc.

JINLIDA specialises in the manufacture of GABION products used in the Civil Engineering, Mining and Architectural Building Industries for the erection of retaining walls and river structures to reduce water flows and prevent soil erosion., and is widely used in the world. The establishment of such a factory in your country can meet the needs of the local market, and can also radiate to other countries.

We have insight into the continuous upgrading of customer needs, and are committed to building a "customer-centered, world-class integrated solution provider for gabion intelligent manufacturing", and are committed to providing customers with services from consulting, design, manufacturing, installation, commissioning One-stop integrated solution for training and subsequent upgrading to continuously improve customer experience.

JINLIDA and WAFIOS in Germany, VITARI in Italy, and NOVAS in Slovakia are both famous, providing professional solutions, products and services for the global market.

JINLIDA provides customers with GABION full-line intelligent solutions. As an international leading GABION intelligent equipment service provider, it has established cooperative relations with more than 50 national well-known GABION enterprises such as , and introduced first-class R&D teams to provide customers with full-line intelligent solutions. Now, Jinlida can provide gabion whole line equipment from gabion raw material detection, raw material online, automatic weaving, automatic straightening and shearing, automatic edging, winding, lamination, assembly system, etc., and equipped with independently developed production execution system to build an intelligent chemical factory for enterprises.

The complete set gabion production line including: gabion mesh making machine,spirial coiling machine ,wire tension device,netting roll winding machine, netting straightening machine,netting cutting machine,netting Transmission system,netting end winding up machine ,gabion box packing machine,selvedge wire straightening and cutting machine,wire payoff system etc.

We are very willing to establish a cooperative relationship with you and hope to maintain communication.
