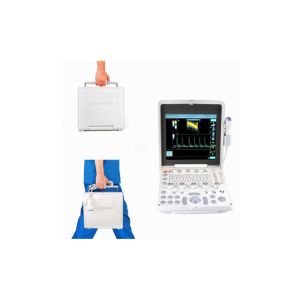

Portable Color Doppler Ultrasound Scanner With 12.1 Inch Screen 2.5-10 MHz Multi-Frequency Probe

Categories	Portable Ultrasound Scanner
Place of Origin:	China
Brand Name:	BIO
Model Number:	5000L
MOQ:	1 unit
Payment Terms:	Credit card, Paypal, T/T
Delivery Time:	7 working - days since getting full payment
Supply Ability:	100 units / month
Packaging Details:	Carton (413241cm) 6kgs
Display:	12.1-inch LED screen
Probe connect:	2
USB ports:	2
TCG:	8 Segment
B mode:	1024 frames
Frame rate:	≥50fps
Display depth:	≥30cm
High-Resolution:	1024 *768
Gray scale:	256
Display Language:	English

Contact Now

Add to Cart

Company Info.

Wuxi Biomedical Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Portable Color Doppler Ultrasound Scanner With 12.1 Inch Screen 2.5-10 MHz Multi-Frequency Probe

Portable Color Doppler Ultrasound Scanner With 12.1 Inch Screen 2.5-10 MHz Multi-Frequency Probe

Standard Configuration

- 12.1-inch LED monitor

- Two transducer connector

- Control Panel

- 2 USB ports

- HDMI

- LAN

- Handle

- Indicators: Power/Battery/Standby

Options

-3D function

- Sony UP-897MD Printer

- One more Battery

- Gel

- printer paper

- Trolley

Ports

1.USB: 2 USB interface can be connected directly to the electronic printing device to print report and to copy data by mobile storage device

2.HDMI:Can be converted to VGA output interface,director connection to a high-resolution display and other display and other display devices,more convenient for patient to show an ultrasound image.

3.LAN: It can be used directly connected the data cable and transfer data to the internet.

Optional probe
5ACR60 Convex probe	R=60mm 2-5MHz
5AL40 Linear probe	L=40mm 5-10MHz
5AL25 Linear probe	L=25mm 5-12MHz
5AMCR20 Micro-Convex probe	R=20mm 2-4MHz
5AMCR11 Micro-Convex probe	R=11mm 5-8MHz
5AMCVR Transvaginal probe	R=10mm 5-8MHz

System Specifications
Display	12.1-inch LED screen
Probe connect	2
USB ports	2
Image formats	BMP, JPG, DCM, FRM,CIN
TCG	8 Segment
B mode	1024 frames
M mode	12.4 s
Frame rate	≥50fps
Display depth	≥30cm
High-Resolution	1024 *768
Gray scale	256
Net Weight	5.5 kg (with battery)
Dimensions	29.831.813.8cm
Body markers	more than 100 Dynamic range,≤165dB
Display Language	English
Power	System operates via AC power
Ports	USB: 2 USB interface can be connected directly to the electronic printing device to print report and to copy data by mobile storage device
	HDMI:Can be converted to VGA output interface,director connection to a high-resolution display and other display and other display devices,more convenient for patient to show an ultrasound image
	LAN: It can be used directly connected the data cable and transfer data to the internet
Image processing	AQ sonic:Reduce random noise
	E Crystal:Adaptive speckle suppression improves contrast resolution
	Multi-frequency probes for LD imaging modes
	Ultra-wideband beamformer
	Iintelligent imaging optimization technology
	Image Zooming
	Near and far Gain adjustment
	With dual and duplex imaging
	2D, Color Doppler and PW displaying on one screen in real time
Large capacity Li-battery	11.1V, 8000MAH
	up to 1000 times charge-discharge,2 hours fully charged
	Removable
	2.5 hours regular use
	Auto switch to battery power in case of suddenly power off
Display Modes	Broadband, multi-frequency imaging
	B, 2B, 4B, B+M, CFM, PDI, DPDI, PW, B+PW(Duplex)
	B+CFM/PDI/DPDI+PW(Triplex)
Application	OB/GYN reporting.
	Small part analysis
	Cardiac analysis with intimate medial thickness measurement
	Velocity Colour to detect colour flow with PW Abdominal, Obstetrical, Gynecological, Cardiac, Small parts, Urological, Vascular, Orthopedics, MSK
