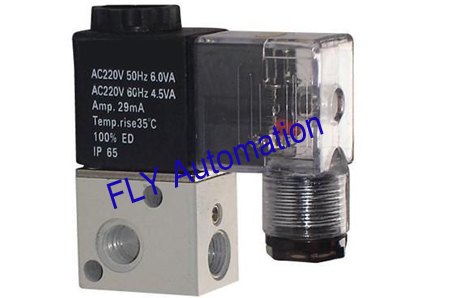

Mini AIRTAC Electromagnetic 3/2 Way NC NO Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8" Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range

Mini AIRTAC Electromagnetic 3/2 Way NC NO Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8" Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range

Mini AIRTAC Electromagnetic 3/2 Way NC NO Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8 Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range
Mini AIRTAC Electromagnetic 3/2 Way NC NO Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8" Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range
Categories Pneumatic Solenoid Valves
Place of Origin: Taiwan, China
Brand Name: AIRTAC, AIRWOLF or OEM
Certification: ISO 9001,CE
Model Number: 3V1-06, 3V1-M5
MOQ: 1 piece
Price: USD5-10
Packaging Details: Plastic bags, Carton, Pallet or according to Customers' Requirement
Delivery Time: 1-7 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs per week
Body Material: Aluminum Alloy
Operating Voltage: DC12V DC24V AC24V AC110V AC220V
Operating Pressure: 0~0.8MPa
Working Temperature Range: -20~+70°C
Port Size: M5, 1/8"
Position: 5/2 way, 5/3 way
Fuction: Direct Control
Working Medium: Dry compressed air filtered by 40μm
Contact Now
Company Info.
Airwolf Automation
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mini AIRTAC Electromagnetic 3/2 Way NC NO Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8" Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range

Mini AIRTAC Electromagnetic 3/2 Way Solenoid Valves 3V1-06, 3V1-M5 with M5, 1/8" Port Size 0~0.8MPa Operating Pressure and -20~+70°C Working Temperature Range​

Order Codes:

TypePort SizePositions
3V1-M5M53/2 way
3V1-061/8"3/2 way

How to Order:


Specification:


Model3V1-M53V1-06
Port SizeM51/8"
Working Mediumto be filtered by 40μ filter element
Motion PatternDirect drive type
Max Ambient Temperature-10~+60oC
Gas Temperature5~60
Effective Cross Section Area1.0mm
LubricationNot required
Working pressure0~0.8MPa
Max. Test Pressure1.2MPa
Power ConsumptionAC:5.5VA DC:4.8W
InsulationF Class
ProtectionIP65
Wiring/ConnectorLead wire or Connector type
Material of BodyAluminum alloy
Switching frequency10 cycle/sec
Operating Voltage Tolerance-10%~+10%
Response time0.05 sec

Detailed Demension:
