3500T Deep Drawing Double Action Power Press Hydraulic Type Thick Plate

Categories Hydraulic Deep Drawing Press
Brand Name: ZHENGXI
Model Number: Yz27/28
Certification: ISO9001,CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Delivery Time: 90 days
Packaging Details: Standard international wooden case or iron pallet package
After-sales Service Provided: Engineers available to service overseas
Power Source: Hydraulic
Controller: PLC
CNC or Not: CNC
Worktable size: Up to clients' requirement
Oil: hydraulic oil
Color: Optional
Advantage: High cost performance and high production
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

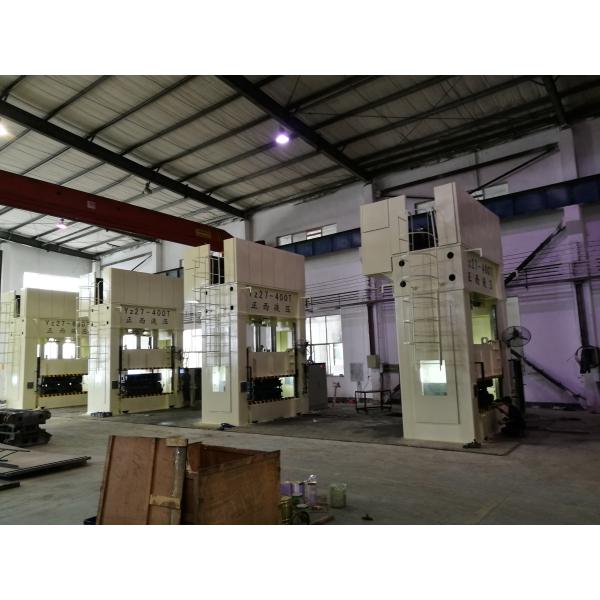

    3500T Deep Drawing Double Action Power Press Hydraulic Type Thick Plate

    3500T double action thick plate deep drawing hydraulic press machine for train door drawing and forming


    1. The whole machine structure adopts four-column horizontal type and fuel tank top. It has the characteristics of new structure, neat arrangement and convenient maintenance.

    2. The movable beam adopts four-point positioning, adjustable center and reasonable tooling design, which can greatly reduce production cost.

    3. Different extrusion processes can be set, and the pipes with different pore diameters can be extruded by follow-up and fixed needles.

    4. The hydraulic parts adopt high-flow cartridge valve system, which has good sealing performance and low temperature rise.

    5. Electrical parts adopt PLC products, which are reliable and sensitive.


    3500T double action thick plate deep drawing hydraulic press machine for train door drawing and forming parameters



    Model

    unit

    Yz28-150T/200T

    Yz28-200T/315T

    Yz28-300T/500T

    Yz28-400T/650T

    Yz28-500T/800T

    Yz28-630T/1030T

    Yz28-800T/1300T

    Nominal Force

    KN

    2000

    3150

    5000

    6500

    8000

    10300

    13000

    Max working pressure of liquid

    MPA

    25

    25

    25

    25

    25

    25

    25

    Drawing force

    KN

    1500

    2000

    3000

    4000

    5000

    6300

    8000

    Side force

    KN

    500

    1500

    2000

    2500

    3150

    4000

    5000

    Ejection force

    KN

    350

    650

    1000

    1600

    400

    800

    835

    Open height

    mm

    1200

    1500

    1600

    1700

    2110

    2300

    2500

    Side open height

    mm

    600

    1180

    1150

    1600

    2000

    2200

    2200

    Drawing stroke

    mm

    700

    800

    900

    1000

    1100

    1400

    1700

    Side stroke

    mm

    300

    800

    900

    900

    1000

    1300

    1400

    Plate stroke

    mm

    300

    300

    350

    350

    350

    400

    350

    Slide speed

    Down

    mm/s

    25/60

    120/120

    100/130

    200/200

    300/300

    270/270

    300/300

    Pressing

    mm/s

    10/10

    13-34/30

    10-24/14-35

    10-30/20-50

    5-50/10-60

    10-30/15-45

    18-24/15-30

    Return

    mm/s

    90/80

    190/130

    115/150

    250/240

    150/300

    270/270

    200/200

    Drawing plate size

    Left-right

    mm

    730

    840

    700

    1800

    2100

    2500

    3900

    Front-back

    mm

    730

    1200

    1000

    1200

    1250

    1500

    1800

    Side slider size

    Left-right

    mm

    730

    1200

    1400

    2500

    3000

    3600

    4680

    Front-back

    mm

    730

    1570

    1600

    1800

    2000

    2400

    2400

    Table size

    Left-right

    mm

    730

    1200

    1400

    2500

    3000

    3600

    4680

    Front-back

    mm

    730

    1200

    1400

    1800

    2000

    2400

    2400

    Motor power

    KW

    24.5

    50

    50

    84

    90

    110

    200

    Type


    Four-column

    Four-column

    Four-column

    Four-column

    Frame

    Frame

    Frame



    Key Features


    Body: Main body use Q345B steel and main big parts are with welded structure, in order to make sure the quality of welding, those big parts will be processed with annealing treatment to eliminate welding deformation and stress, positioned block has been used in the joint surface between the lower platen, column, beam to prevent dislocation to guarantee the precision of installation; Four tie bar has been pre-tightened by hydraulic force, slide use eight side guiding system to reach the advantage of high adjustable precision, good rigidity. Besides, the guiding system use wear resistant bronze material, it has good wear resistance and long life use.

    Cylinder: Main cylinder body use whole parts 45# quality forged steel as well as piston and plunger, surface with hardening treating, hardness can reach HRC45 or more. Seals use imported components to guarantee the sealing.

    Lubrication device: Slider and hydraulic cushion rail adopt centralized intermittent oil lubrication system, it has lubricating oil level indicator and filter clogging alarm function, you can set the lubrication time on the touch screen.

    Hydraulic System: The machine is equipped with the oil filtration system, when operate the machine, this system automatically circulate the oil tank filter to clean the oil; the pump and motor group and hydraulic control valve has been placed on the surface of the oil tank, main pump and motor group use horizontal installation method. At the bottom of the tank, pump inlet is equipped with a permanent magnet, remain the impurities on the permanent magnet, reducing hydraulic system failure.

    Oil Tank: it is mounted on the top: tank disposed on the side of the upper platen, it has oil indicator, and with oil clogging alarm system.

    Noise: According to DIN EN ISO 11202 stds measured in 1 m distance form operator working position on a height of 1.6 m for a time of 90 s.

    Painting: As per customer’s requirement.

    CE-Norm: This offer is for the supply of machine according to Directives 2006/42/EC and its amendments.


    Optional Function/Device


    Body of Machine:

    · Mobile Workbench

    · Buffer device

    · Heating plate

    · Blanking hole

    · Mould frame


    Control System:

    · Electric Control: PLC/ Servo computer

    · Hydraulic system control: plate cartridge valve

    · Operating Interface (Colorful Touch Screen): none/ 7"/ 10"/ 15"

    · Mobile Operator: none/ 1pcs/ 2pcs/ suspension type

    · Fast down: none/ Self-weight fast down/ Fast cylinder fast down/ Large flow rate fast down

    · Fault alarm

    · Equipment Action Monitoring

    · Mould Information Storage One-click Switching

    · Main Cylinder Pressure Digital Display

    · Reserved Auxiliary Control Oil Circuit and Electronic Control

    · Pressure Curve Monitoring

    · Precise Displacement Control of Slider

    · Hydraulic oil forced-cooling system: none/ wind cooling/ water cooling/ electric cooling

    · Servo system: none/ CNC/ Servo valve/ Servo motor

    · Oil absorption filtration


    Security Function/Device

    · Slide Block Anti-drop: Hydraulic Double Support Protection

    · Upper limit bolt locking

    · Manual Pillar (Workbench)

    · Automatic clamper

    · Safety light cutainer sensor

    · Sheet Metal Fence

    · Roof Maintenance Platform

    · Safety ladder

    · Circuit Short Protection

    · Motor overload protection

    · Distribution Box Cooling System

    · Start button working with Two-hand

    · Emergency stop button

    · Password permission function


    Auxiliary Device

    · 220V/380V/440V power socket

    · LED machine tool lamp

    · Model change trolley

    · Inching

    · Sectional compression

    · Vulnerable spare parts

    · Machine Installation/Maintainess Tool


    Note: All function/device above are optional, a part of them are free but some have extra cost, pls contact our sales person to know the rate.
